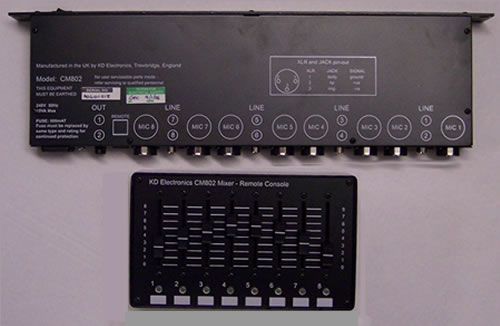

CM802 - Remote Control Church Mixer Specification





Technical Specification
Power   240 volts AC 50/60 Hz 15VA max via IEC connector
Inputs   mic: 1.5mV balanced into 600 ohms via 3-pin XLR or 1/4" stereo jack
    line: 775mV unbalanced into 10Kohm via phono connectors
Outputs   775mV 560ohm unbalanced via 1/4" mono jack
Noise
  mic inputs: -62.59dB (10 - 100kHz)
    line inputs: -76.0dB (10 - 100kHz)
Dimensions   main unit: 19"x 1u x 180mm
    remote: 215mm x 130 x (sloping to) 78 max
