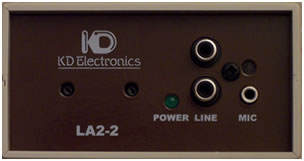

LA2-2 - Mini Induction Loop Amplifier





Technical Specification
Power   via 10 volt AC mains adaptor (supplied)
Inputs   mic: 3.5mm jack
    twin phono
Outputs   two part terminal block
Power connector
   2.1mm concentric power plug
Input sensitivity   mic: 3.5mV
    line:165mV
AGC range   output within 2dB over a 20dB input range
Output level   2 amps at 0.1 ohms, 1.2amps at 1.0 ohms
Output loop   32/0.2 single core tri-rated recommended (not supplied)
Dimensions   height 92mm x width 100mm x depth 110mm
