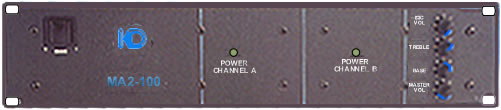

MA2-100 - Dance Class Mixer Amplifier





Technical Specification
Power   240 volts AC
Inputs   mic: 1/4" jack balanced mic input sensitivity: 1.5mV into 300 ohm
    line: two pairs of phono sockets sensitivity: 175mV into 10 kohms
Outputs   two parallel connected phono sockets per channel, 775mV (0dB)
1/4" jack per channel, 100 watts into 4 ohm (continuous sine wave)

  tone: bass +/-12dB @ 100 Hz treble: +/-12dB@10 kHz
    distortion: <0.5% THD @ 50 watts


signal to noise (power amp):
from line on mixer:
from mic on mixer:

 >80dB (10 Hz to 100Hz)
> 78dB
> 75dB
Dimensions   19” x 2u x 132mm
