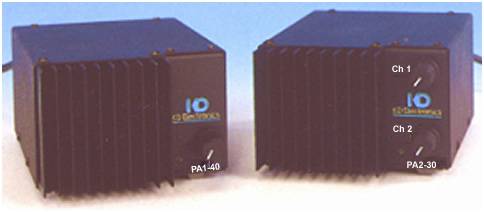

PA2-30 & PA1-40 - Twin and Single Channel Mini Amp



Single and two channel amplifier

Technical Specification
Power   240 volts AC via captive cable with 2 metre lead
Inputs   2 phono sockets (paralleled in PA1-40)
Sensitivity   775mV into 47kohms for full output
Outputs   Two ¼” jack sockets (paralleled in PA1-40)

  PA1-40: 40 watts into 8 ohms continuous sine wave rating
    PA2-30: 2 x 30 watts into 8 ohms continuous sine wave rating
Distortion   <0.2% THD at full output
    Signal to noise >103dB (10Hz to 100kHz)
Dimensions   height 84mm x width124mm x depth 200mm
