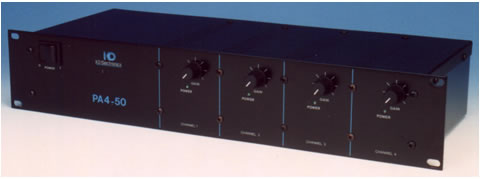

PA4-50 - Multi Channel Amplifier



Four channel amplifier

Technical Specification
Power   240 volts ac with front panel LEDs per channel to indicate power on
Inputs   2 parallel connected phono sockets per channel
    Sensitivity: 0db (775mV) for full output
    Impedance>10kohm
Outputs   ¼” mono jack socket

  50 watts into 8 ohms (continuous sine wave)
65 watts into 4 ohms (music rating)
    Distortion <0.3% THD at 50 watts
    Signal to noise >70dB
Dimensions   19” x 2u x 185mm
