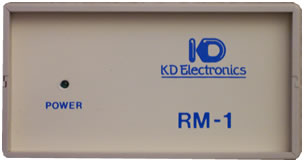

RM1 - Stand Alone Remote Control



stand alone remote control

Technical Specification
Power   12V ac via PSU-1 power supply (not supplied) from 240v mains
Connectors   Input: Quad phono sockets
    Output: Quad phono sockets
Remote control   via 5-core unscreened wire (eg burglar alarm cable) connected via 5-way
detachable screw terminal block. Use RC3 or RC3/1 panel
Gain   unity gain – volume control offers at least 70dB
Tone   bass +/- 8dB at 100Hz treble +/- 9dB at 10kHz
Distortion   <0.2%THD. S/N>60dB. unweighted 100Hz-20kHz
Dimensions   height 92mm x width 100mm x depth 110mm

The RM-1 requires a PSU-1 power supply and is best used with RC3 or RC3/1 panel
